Five product lines designed for every electrical fire protection challenge
Get a personalized SKU recommendation
Flexible self-adhesive passive fire suppression patches with built-in visual thermal indicator. Our widely used product line for electrical panels and enclosures.
| SKU | Size | Protection | Temp |
|---|---|---|---|
| QPF-0083-PRL | 80×30mm (Nano) | Precision | 80°C |
| QPF-0105-PRL | 100×50mm (Slim) | Precision | 80°C |
| QPF-0105-STM | 100×50mm (Slim) | Standard | 140°C |
| QPF-0153-STL | 150×30mm (Strip) | Standard | 80°C |
| QPF-0110-STM ⭐ | 100×100mm (Standard) | Standard | 140°C |
| QPF-0110-STL | 100×100mm (Standard) | Standard | 80°C |
| QPF-0110-STH | 100×100mm (Standard) | Standard | 180°C |
| QPF-0210-STM | 200×100mm (Large) | Standard | 140°C |
| QPF-0210-HCH | 200×100mm (Large) | High-Capacity | 180°C |
| QPF-0210-BLL | 200×100mm (Large) | Blend | 80°C |
Suffix options: -E (enhanced adhesive), -MAG (magnetic), -SNAP (snap-on), -C (custom)

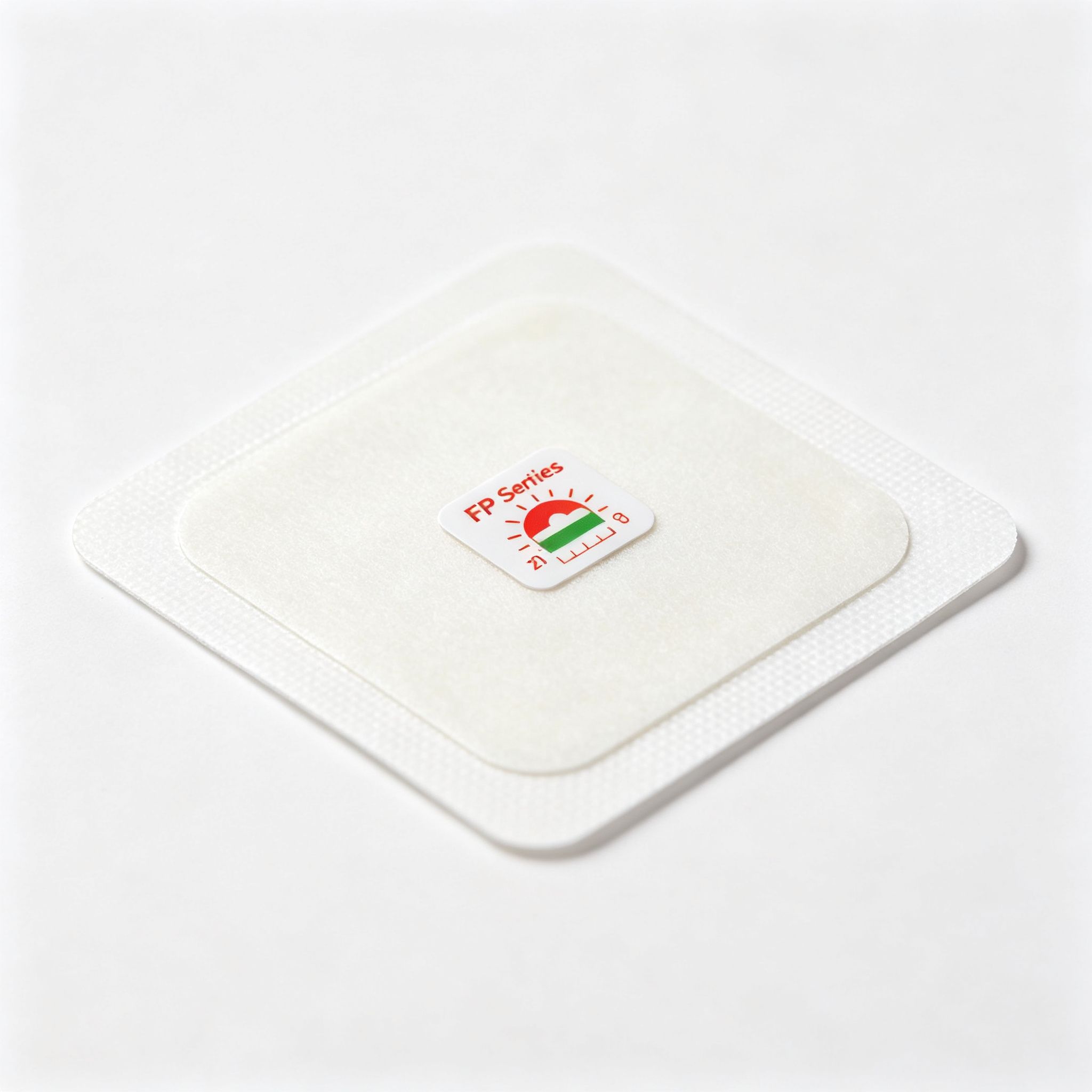

Request QuoteCompact plug-in fire protection patches designed for consumer electronics and power outlets. Surface-mount design sticks directly onto plugs, chargers, and socket faceplates. QuellTag modules are engineered for fast deployment in confined spaces where traditional suppression systems cannot fit. Each unit is factory-sealed, requires no refilling or pressurization, and remains maintenance-free for the full five-year service life. Designed to meet FM Approved, UL Listed, CE and UKCA requirements, QuellTag is ideal for protecting telecom enclosures, industrial control cabinets, and residential electrical panels where space is at a premium.
| SKU | Size | Protection | Temp | Pack |
|---|---|---|---|---|
| QPT-0060-STM ⭐ | 60×60mm (Micro) | Standard | 140°C | Single |
| QPT-0060-PRL | 60×60mm (Micro) | Precision | 80°C | Single |
| QPT-0083-STM | 80×30mm (Nano) | Standard | 140°C | Single |
| QPT-0060-STM-3PK | 60×60mm (Micro) | Standard | 140°C | 3-Pack |
| QPT-0060-STM-6PK | 60×60mm (Micro) | Standard | 140°C | 6-Pack |
Heavy-duty aluminum armored fire suppression panels with magnetic mounting and built-in temperature history indicator. Designed for industrial and energy storage applications.
| SKU | Size | Protection | Temp |
|---|---|---|---|
| QPA-0105-STM | 100×50mm (Slim) | Standard | 140°C |
| QPA-0110-STM ⭐ | 100×100mm (Standard) | Standard | 140°C |
| QPA-0110-STH | 100×100mm (Standard) | Standard | 180°C |
| QPA-0210-STM | 200×100mm (Large) | Standard | 140°C |
| QPA-0210-HCH ⭐ | 200×100mm (Large) | High-Capacity | 180°C |
| QPA-0153-HCC | 150×30mm (Strip) | High-Capacity | 140°C |
Mount options: -E (adhesive), -MAG (magnetic), -SNAP (snap-on). All Armor models include temperature indicator.
Request QuoteSpecialized thermal fire extinguishing coating for busbars, cable trays, and electrical conductors. Applied as a paint-like coating for continuous protection. QuellCoat is applied via brush, spray, or dip for uniform coverage on busbars, cable trays, conductors, and enclosure interiors. The coating is electrically insulating, corrosion-resistant, and contains microencapsulated FK-5-1-12 clean agent that releases automatically at rated activation temperatures. Designed to meet FM Approved, UL Listed, CE and UKCA requirements, QuellCoat provides continuous passive fire protection for electrical infrastructure where patch-style products cannot conform to complex geometries.
| SKU | Size | Coverage |
|---|---|---|
| QPC-0250 | 250g | ~2.5 m² |
| QPC-1000 | 1kg | ~10 m² |
| QPC-5000 | 5kg | ~50 m² |

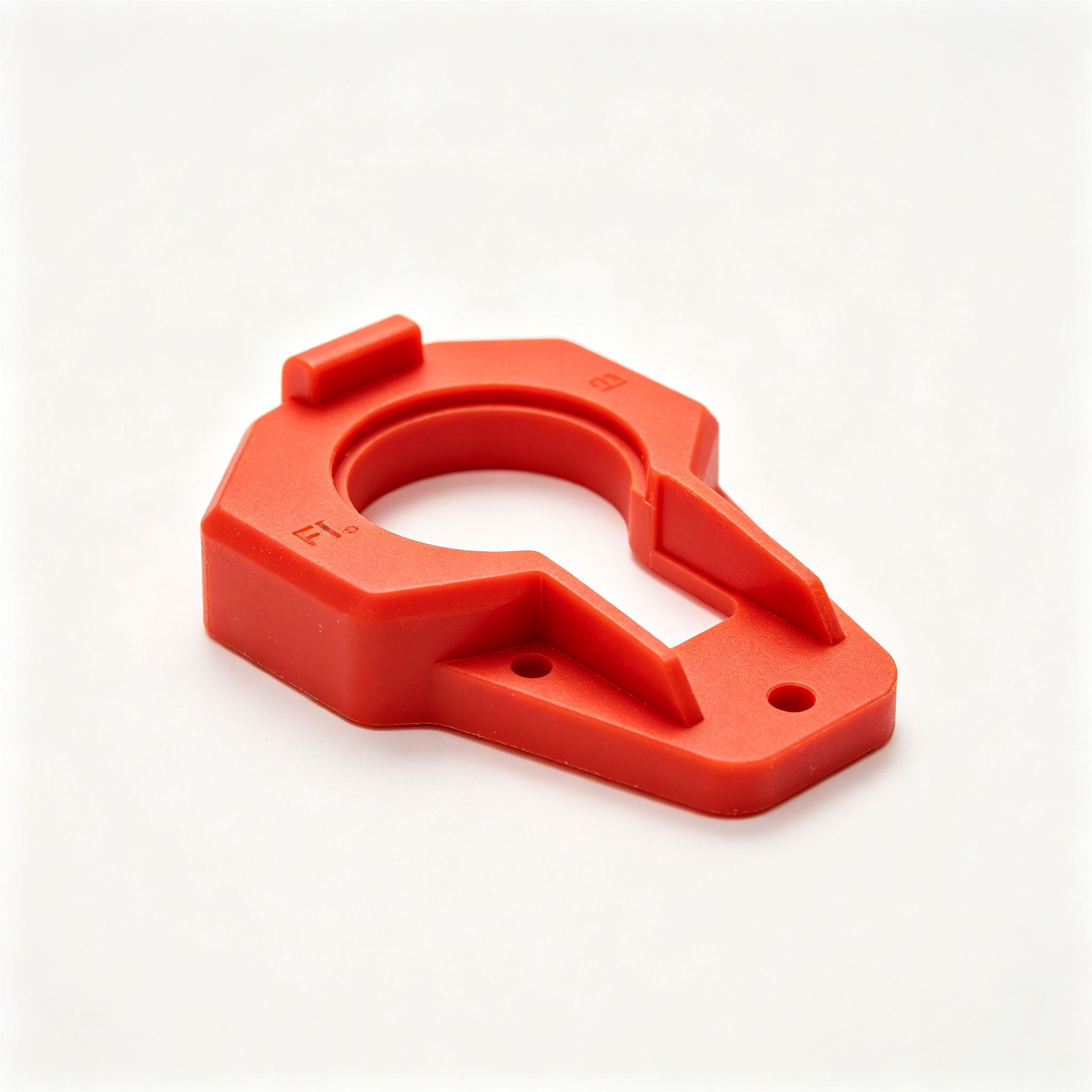

Custom-engineered fire protection solutions for unique applications and form factors. Our engineering team designs solutions tailored to your specific requirements.
Form - Custom shaped fire components
Pouch - Flexible pouch-style solutions
Cylindrical - Round/cylindrical form factors
Special - One-of-a-kind applications
