Technical guide on data center rack fire for electrical fire protection
A single rack fire can cascade into a catastrophic outage if not contained within seconds. Rack-level fire protection offers a first line of defense, using compact suppression systems that discharge directly into the enclosure. This approach limits fire spread, reduces agent discharge volumes, and keeps adjacent equipment operational—a critical consideration for colocation and enterprise data centers.
As rack power densities increase, the gap between room-scale fire protection and the point of ignition inside a server cabinet becomes more important. A data center rack fire often starts on a printed circuit board, in a server power supply, at a loose busbar connection, or within insulated cable bundles. By the time smoke reaches ceiling detectors or a room-level clean-agent system discharges, the local IT equipment fire may already have spread to adjacent U-positions, cable management arms, or plastic air baffles.
Server cabinet protection therefore requires an engineered layer that acts close to the fuel source. QuellPatch is a passive, clean-agent suppression product designed for this role. It uses microencapsulated FK-5-1-12 agent and fixed thermal activation to provide local rack suppression without piping, nozzles, pressure cylinders, or external control power. This article examines the fire dynamics that justify rack-level protection, how QuellPatch operates, how to select activation temperatures, and how to lay out, commission, and maintain the system within a broader data center fire strategy.
Most IT equipment fires begin as small, low-heat-release events. Common ignition sources include failing electrolytic capacitors, overloaded power supplies, arcing at connectors, tracking on contaminated printed circuit boards, and lithium batteries on RAID or controller cards. In the first few minutes, the heat release rate may be only a few kilowatts, but the fire is often located in a cluttered, airflow-rich environment where flames can impinge on cable insulation and plastic structural components.
Server fans can both help and hinder suppression. During normal operation they move large volumes of cooling air; during a fire they can supply oxygen, push heat into the hot aisle, and delay the buildup of a uniform smoke layer at ceiling level. They can also pull gaseous agent through the cabinet if the agent is released near the intake side of the affected equipment.
A typical 42U server cabinet may have an internal volume of approximately 0.5 to 0.7 m³ after equipment, cable bundles, and power distribution units are installed. That volume is small, but it is not tight. Perforated doors, cable cutouts, blanking-panel gaps, and server fan pressure create high effective air-change rates. A room-level total-flooding agent must travel from ceiling nozzles into the cabinet, while a local device releases agent directly where the heat is developing.
Containment systems further complicate the picture. Hot-aisle containment can raise exhaust temperatures and trap heat, while cold-aisle containment can pressurize cabinet intakes. A properly selected rack suppression device can reduce dependence on long agent transport paths and provide a faster response to an incipient cabinet fire.
QuellPatch stores FK-5-1-12 clean agent in microencapsulated form. Each patch contains many small polymer shells that separate the liquid agent from the surrounding equipment. FK-5-1-12 has a boiling point near 49.2°C and is liquid at normal room temperatures; when released, it vaporizes rapidly and acts through heat absorption and interruption of the combustion reaction. It is electrically non-conductive and, under normal discharge conditions, does not leave particulate or oily residue on common IT materials.
Microencapsulation allows the agent to be distributed in thin, lightweight patches that can be mounted on rails, cabinet tops, side panels, or near power distribution equipment. Because there is no stored pressure vessel, the device does not require pressure gauges, solenoid valves, or pipe runs. The polymer shells also help prevent agent loss from small handling damage during cabinet maintenance.
QuellPatch uses passive thermal activation. When the capsule shell reaches its rated temperature, it ruptures and releases the agent. The product line offers activation temperatures of 80°C, 140°C, and 180°C, allowing the designer to match response to the local thermal environment.
The 80°C variant is generally suited to upper exhaust areas, cable zones, or locations where normal surface temperatures remain below about 60°C. The 140°C variant is commonly used for general server cabinet protection near power supplies, midplanes, and patch areas where brief elevated temperatures may occur. The 180°C variant is intended for higher-temperature zones such as high-current busways, rack power distribution units, or industrial cabinets where surface temperatures can approach 100–120°C under heavy load. Selection should be based on measured peak temperatures plus an appropriate engineering margin rather than on nominal room temperature alone.
Because patches are mounted close to the protected hazard, the released agent enters the fire plume and the local cabinet air rather than relying on long downward travel from a ceiling nozzle. The burst pattern of the microcapsules, the position of the patch, and the local airflow determine how quickly agent reaches the flame. Server fans may assist distribution by drawing vapor through the affected equipment, but they can also remove agent through exhaust openings. For this reason, QuellPatch is positioned as local protection for an IT equipment fire and should be evaluated as part of a system that may also include room-level suppression, detection, and emergency power off.
A practical layout begins by dividing the cabinet into hazard zones rather than treating the rack as a single volume:
Each zone has different normal temperatures, fuel packages, and ignition probabilities. A thermal survey or review of the cabinet monitoring data can identify baseline and peak temperatures before selecting 80°C, 140°C, or 180°C patches.

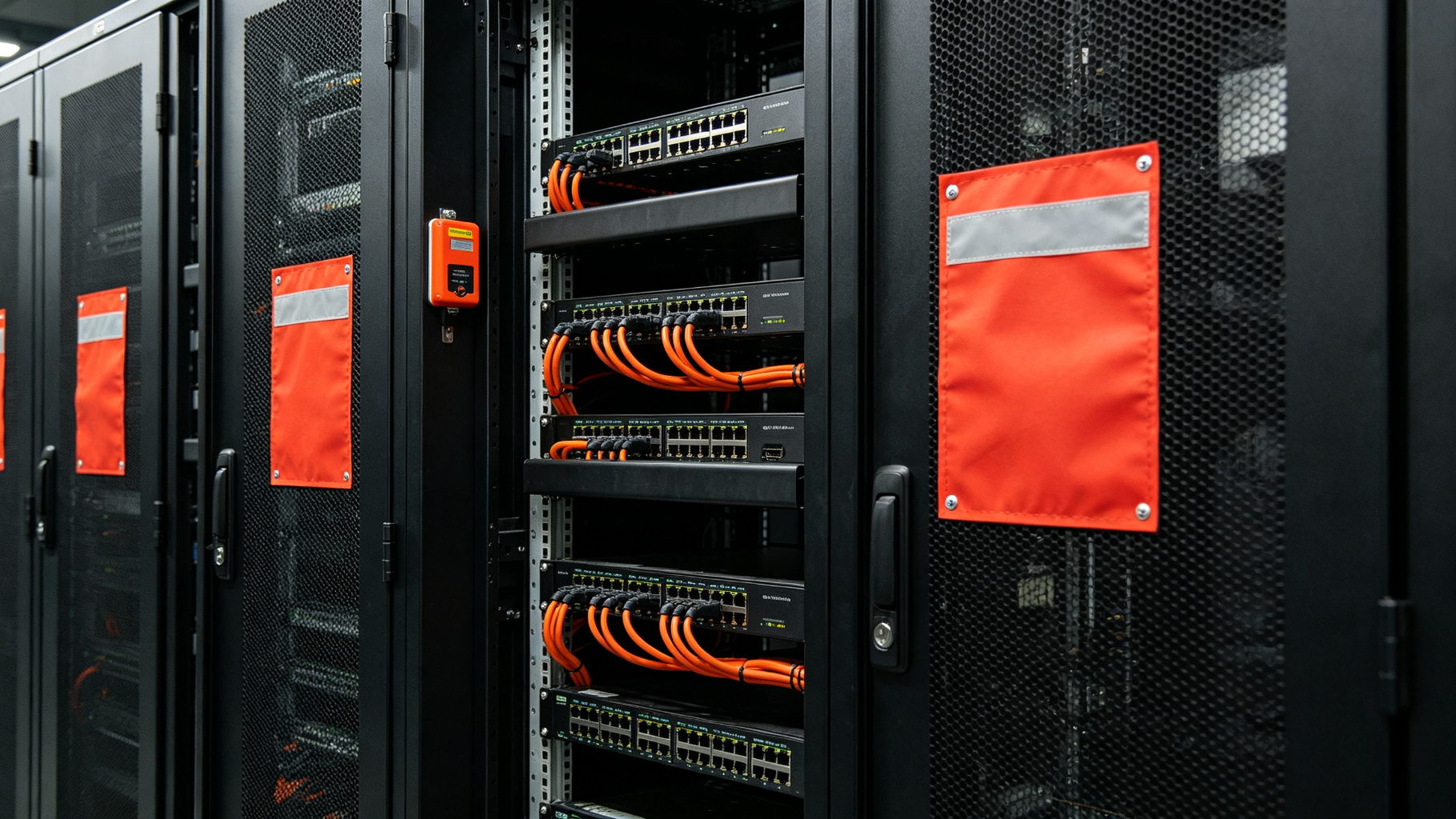

Patches should face the likely fire source without blocking service access or critical airflow. Typical mounting locations include the underside of the cabinet top, the rear section near exhaust paths, vertical rails adjacent to PDUs, and side panels opposite high-density server rows. For a standard 600 × 1200 mm cabinet, a layout may combine patches at the top exhaust, near the primary PDU, and at intervals through the compute zone. The exact quantity and spacing should follow the manufacturer’s listed application guidance and the cabinet’s leakage and airflow characteristics.
Patches should not be placed directly on heat sinks or components whose normal operating temperature approaches the selected activation threshold. They should also not be covered by cables, labels, or equipment blanks, because covering can delay heat transfer to the capsule shells.
Blanking panels, sealed cable cutouts, and orderly cable management can reduce air leakage and help retain discharged agent near the hazard. In hot-aisle containment, upper rack temperatures may be higher than in uncontained cabinets, making threshold selection especially important. If the facility’s emergency response plan includes remote emergency power off, coordination with the fire alarm sequence can reduce fan-driven oxygen supply after suppression. However, QuellPatch itself does not require power or alarm wiring to activate.
Commissioning should document each patch location, activation temperature, serial or lot identifier, and installation date. The installer should verify that surfaces are clean, patches are securely adhered or mechanically fastened, and no patch is punctured, twisted, or exposed to solvent contamination. FK-5-1-12 is compatible with most metals and plastics used in IT equipment, but the patch shell and adhesive should not be exposed to harsh cleaning chemicals or repeated liquid contact.
Because QuellPatch is passive and has no pressure gauge, inspection is primarily visual. At intervals consistent with the site maintenance plan, personnel should check for cracking, bulging, discoloration, peeling, or physical damage. They should also confirm that added cables or equipment have not covered the patches. If measured cabinet temperatures have changed due to higher-density IT loads, the selected activation thresholds should be reviewed.
QuellPatch has a 5-year service life under normal indoor data center conditions. Units should be replaced at the end of that period, after any activation, or if inspection reveals damage. Activated patches cannot be recharged or reused. After a data center rack fire event, the cabinet should be electrically isolated, inspected for hidden damage and re-ignition, and cleaned of combustion byproducts before replacement patches are installed and equipment is returned to service.
Rack-level protection addresses a specific limitation of room-scale fire systems: the first minutes of an IT equipment fire occur inside a crowded, fan-ventilated server cabinet. QuellPatch provides local rack suppression using microencapsulated FK-5-1-12 and passive thermal activation at 80°C, 140°C, or 180°C. Its 5-year service life, lack of external power requirements, and flexible mounting make it suitable for both new and retrofit server cabinet protection.
Effective design depends less on treating the patch as a generic device and more on understanding cabinet airflow, hazard zones, and normal surface temperatures. When selected, located, and maintained as part of a defense-in-depth strategy that includes detection, emergency power off, room-level suppression where required, and trained response, QuellPatch can reduce the likelihood that a small cabinet fire grows into a larger data center loss.
A: Normal server exhaust commonly runs about 40 to 65°C, which is below the 80°C activation threshold. The 140°C and 180°C variants are designed for hotter power-distribution, busway, generator, or high-heat equipment locations. To avoid nuisance activation, measure peak temperatures at the exact mounting point and keep at least a 20°C margin below the selected rating.
A: No. QuellPatch uses passive thermal activation: the microencapsulated FK-5-1-12 releases when the capsule shell reaches its rated temperature. This makes it suitable for retrofit server cabinets, edge racks, and distributed IT rooms where adding powered suppression or alarm wiring would be costly or disruptive. It should be treated as a complementary layer, not a replacement for rack or room detection systems.
A: QuellPatch has a stated service life of 10 years under normal indoor conditions when installed according to the manufacturer’s instructions. Inspection should be included in routine rack or electrical-enclosure maintenance to check for damage, detachment, coating integrity, or exposure to abnormal temperatures. Replacement is required after activation, physical damage, or expiration of the rated service period.
A: There is no universal count because coverage depends on rack size, airflow, blanking, cable density, power density, and whether the risk is in the IT space or a rack-mounted PDU/busway compartment. Engineering layout should place patches near likely ignition sources such as power strips, rack PDUs, bus connections, dense cable bundles, and high-heat rear zones. For high-density or critical racks, a site-specific layout based on inspection and temperature mapping is recommended.
A: FK-5-1-12 is electrically non-conductive and leaves no residue, so it is commonly used for protection of electronics and electrical equipment where dry chemical or water exposure would create additional damage. It also has zero ozone-depletion potential and a relatively short atmospheric lifetime. As with any suppression agent, discharge should be followed by inspection, ventilation assessment, and determination of whether equipment or patches need replacement.
